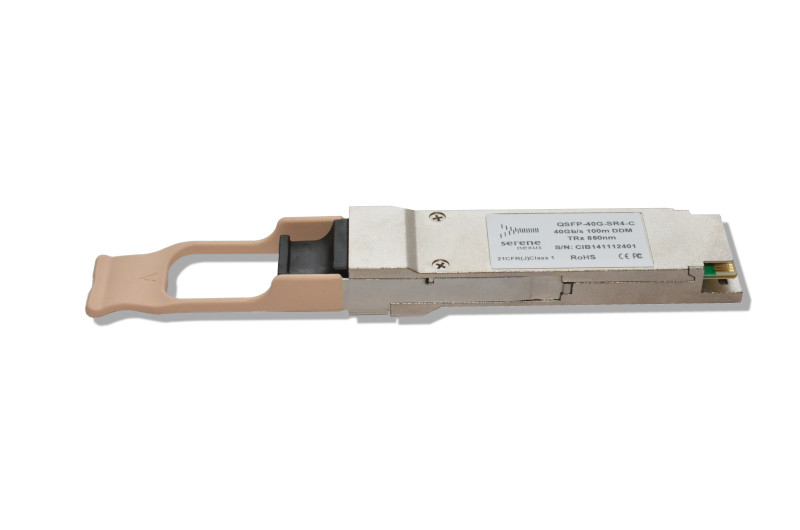

QSFP-40G-SR4 Serene Nexus QSFP-40G-SR(4)-C
Netto 349,00 PLN
Brutto 429,27 PLN
Liczba sztuk w magazynie: 2
Opis
Product Features
- HUAWEI compatibility
- 4 channels full-duplex transceiver modules
- 10.3125Gb/s data rate per channel
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Single MPO connector receptacle
- Hot Pluggable QSFP+ form factor
- Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
- Compatible with RoHS
- Single +3.3V power supply
- Real Time Digital Diagnostic Monitoring
- Operating case temperature: 0 to +70°C
Applications
- 40GBASE-SR4 Ethernet
- Switch, router and HBAs
- Infiniband transmission at 4 channels SDR, DDR and QDR
- High-performance Backplane Applications
- Proprietary Protocol Applications
Description
The Serene Nexus QSFP-40G-SR(4)-C transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 100m transmission distance with MMF.
The transceiver consists of three sections: 4 channels 850nm VCSEL array, 4 channels PIN photo detector array and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with 40GBASE-SR4 of IEEE802.3ba standard and SFF-8436 specification.
