I350-F4-C - karta światłowodowa 4x SFP 1GB

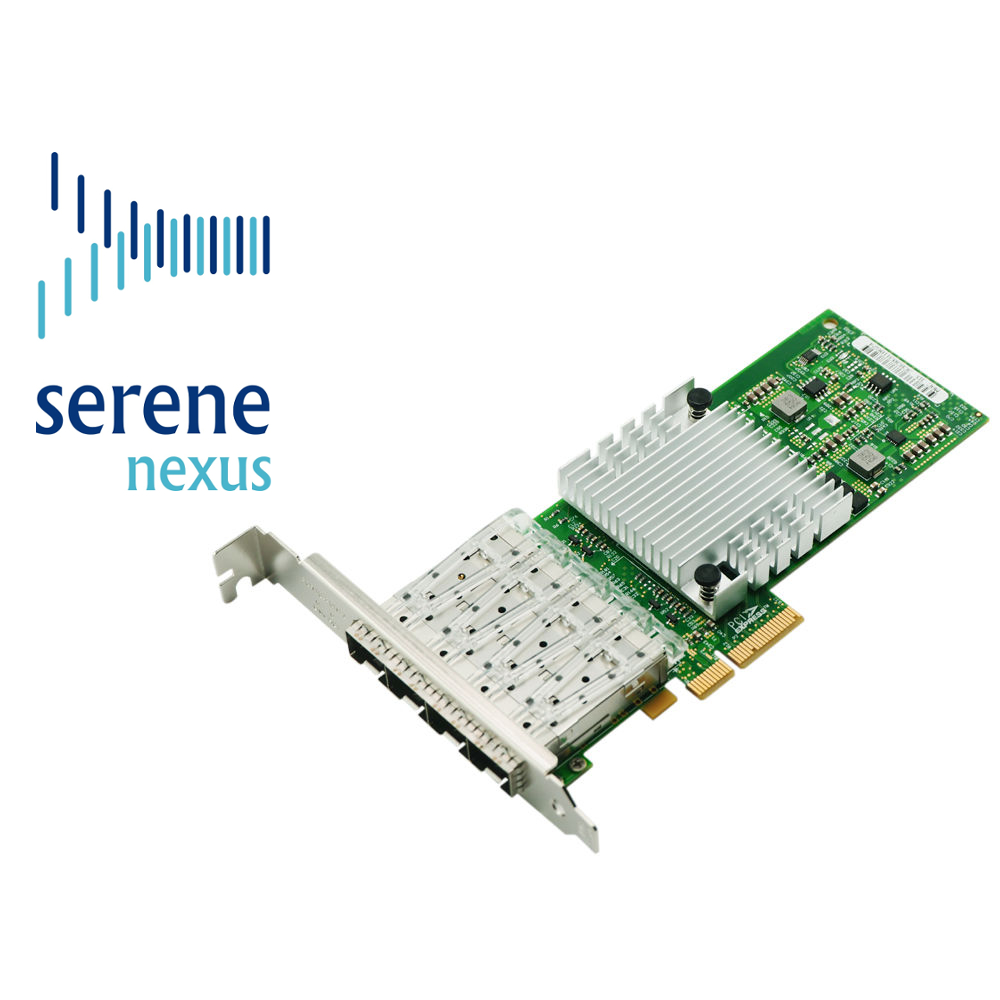

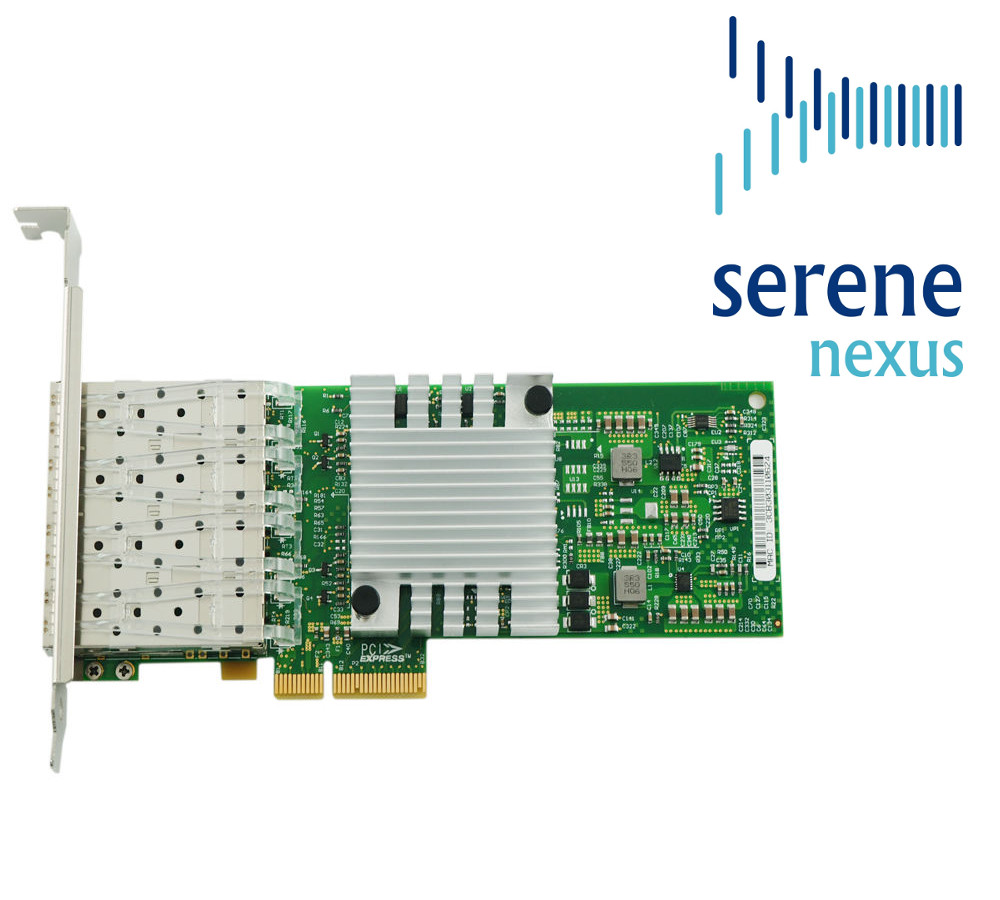

Serene Nexus I350-F4-c (zgodna z Intel I350-F4)
Karta światłowodowa wyposażona w cztery zatoki SFP 1GB, zasięg 550m-120km, PCI-Express x4.
karta światłowodowa, I350-F4, SFP, INTELI350-F4
Cena netto: 1099,00 PLN
Cena brutto: 1351,77 PLN
Liczba sztuk w magazynie: 1
karta światłowodowa, I350-F4, SFP, INTEL

Serene Nexus I350-F4-c (karta zgodna z Intel I350-F4, cztery zatoki SFP 1GB, PCIe x4)


General Features

Intel Ethernet Controller I350

With PCI Express- V2.1 (5 GT/s) Support

Low-Profile and Standard height full


Ethernet Features

IEEE- 802.3 auto-negotiation

1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant

Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex

IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation


Power Management and Efficiency

IEEE802.3az - Energy Efficient Ethernet (EEE)

DMA Coalescing

Smart Power Down (SPD) at S0 no link / Sx no link

ActiveStatePower Management (ASPM) Support

LAN disable function

Full wake up support

Advanced Power Management (APM) Support (formerly Wake on LAN)

Advanced Configuration and Power Interface (ACPI) specification v2.0c

Magic Packet- wake-up enable with unique MAC address

ACPI register set and power down functionality supporting D0 and D3 states

MAC Power Management controls

Low Power Link Up - Link Speed Control

Power Management Protocol Offload (Proxying)

Latency Tolerance Reporting (LTR)


I/O Virtualization Features

Eight transmit (Tx) and receive (Rx) queue pairs per port

Flexible Port Partitioning:

32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port

Support for PCI-SIG SR-IOV specification

Rx/Tx Round-Robin Scheduling

Traffic Isolation

Traffic Steering

VM to VM Packet forwarding (Packet Loopback)

MAC and VLAN anti-spoofing

Malicious driver detection

Storm control

Per-pool statistics, offloads, and jumbo frames support

Independent Function Level Reset (FLR) for Physical and Virtual Functions

IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

IEEE 802.1q advanced packet filtering

Mirroring rules

Support for Simple VEPA

VF Promiscuous modes


Stateless Offloads/Performance Features

TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send);ExtendedTxdescriptors for more offload capabilities

IPv6 support for IP/TCP and IP/UDP receive checksum offload

Tx TCP segmentation offload (IPv4, IPv6)

Transmit Segmentation Offloading (TSO)

Interrupt throttling control

Legacy and Message Signal Interrupt (MSI) Modes

Message Signal Interrupt Extension (MSI-X)

Intelligent interrupt generation

Receive Side Scaling (RSS) for Windows environment

Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP

Support for packets up to 9.5K Bytes ( Jumbo Frames)

Low Latency Interrupts

Header/packet data split in receive

PCIe v2.1 TLP Processing Hint Requester

Descriptor ring management hardware for Transmit and Receive


Remote Boot Options

Preboot eXecution Environment (PXE) flash interface support

Intel Ethernet iSCSI Remote Boot for Windows, Linux, and VMware

Intel Boot Agent software:

Linux boot via PXE or BOOTP, Windows- Deployment Services, or UEFI


Manageability Features

Management Component Transport Protocol (MCTP)

Firmware Based Thermal Management

IEEE 802.3 MII Management Interface

MAC/PHY Control and Status

Watchdog timer

Extended error reporting

Controller Memory Protection

Vital Product Data (VPD) Support


Adapter Product Features

Plug and play specification support

Intel I/O Acceleration Technology (Intel I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package


Technical Features

Data rate supported per port: 1000 Mbps

Bus type: PCI Express- 2.1 (5 GT/s))

Bus width: 4-lane PCI Express; operable in x4, x8 and x16 slots

Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X

Controller-processor: Intel Ethernet Controller I350

Power consumption (typical): 6.0 W

Storage temperature: -40 to 70 Centigrade

Operating temperature :0 to 55 Centigrade

Storage humidity: 90% non-condensing relative humidity at 35 Centigrade


Network Operating Systems (NOS) Software Support

DOS, Novell ODI

Windows XP 32-bit (64-bit)

Windows Server 2003 32-bit (64-bit)

Windows Vista 32-bit (64-bit)

Windows 7 32-bit (64-bit)

Windows 8 32-bit(64-bit)

Windows 8.1 32-bit (64-bit)

Windows Server 2008 32-bit (64-bit)

Windows Server 2008 R2 32-bit (64-bit)

Windows Server 2012

Windows Server 2012 R2

Linux 2.4 series kernel.2.6.x.3.x

FreeBSD 7.x or most of the FreeBSD

UnixWare / Open Unix 8

Sun Solaris x86
