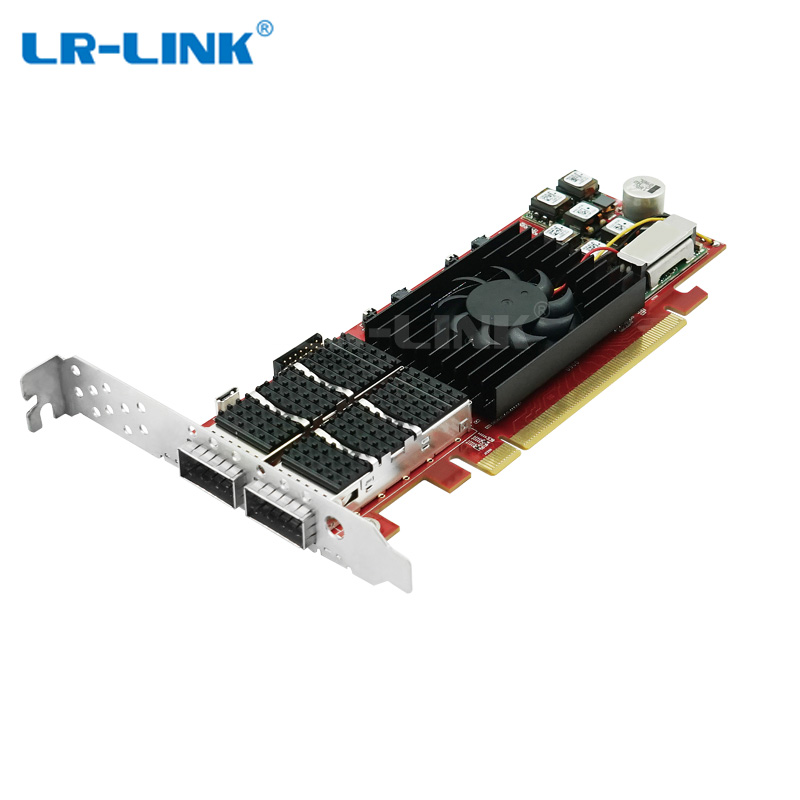

LREG1001PF-2QSFP28
Opis
LREG1001PF-2QSFP28 is a dual-port 100G FPGA fiber-optic Ethernet PCI-Express v3.0 x16 intelligent network card developed by Shenzhen Lianrui Electronics Co., Ltd. based on Xilinx Ultrascale+16nm VU3P chip solution. The intelligent network card has high throughput. The low-latency network processing capability and the ability of the auxiliary CPU to perform network function unloading maximize the CPU power, reduce CPU usage and reduce power consumption.
The intelligent network card can be directly installed on the PCIe slot of the server or other device, which is very convenient. The IP core involved has independent intellectual property rights, and the network can be intelligentized through the combination with specific applications and services. , programmable, thus saving CPU usage.
The intelligent network card has chip-level encryption function to realize data security processing and transmission, and also has protection against over-temperature, over-current, over-power, etc., so as not to be damaged by power supply impact.
When the intelligent network card is used directly on the server, the single CPU core can support the transmission speed of transmitting and receiving bidirectionally up to 80 Gbps. When the multi-card single-board link communication is performed by Firefly, the full-duplex transmission and reception of 300 Gbps can be achieved. The ability to process text.
The intelligent network card is the first in China to provide secondary function development supporting P4 programming. It can realize real-time configurability of network card processing functions, support users to implement custom security policy configuration and detection for network cards, and support OvS offloading. It can monitor the traffic and delay of data packets in the network NIC in real time. Through P4 telemetry technology, it can form an end-to-end telemetry technology solution with P4-enabled switches to observe the traffic, congestion and delay of the entire link in real time, providing real-time network deployment. Reference conditions.
LREG1001PF-2QSFP28 intelligent network card is especially suitable for artificial intelligence, deep learning, network acceleration, gene sequencing, video processing, financial analysis and other fields that have special requirements for network delay and data processing requirements due to its excellent performance.
• P4 featured programmable match-action policies
• Open vSwitch datapath offload
• SR-IOV
• DPDK, zero-copy
• SDN ready as well as supporting legacy network management systems
• High throughput monitoring & data export
• Multi purpose and adaptive fragile service offload & delivery
• Highly Programmable platform in hardware and software
Controller |
Xilinx Ultrascale+16nm VU3P |
Transmission medium |
Fiber |
Medium Type |
100GBASE_CR4、100GBase-LR4、100GBase-Cu |
Baffle Height |
Low Profile & Full Height |
Power Consumption |
25W (75W when in need) |
Connector |
2*100G QSFP28 |
DDR |
8GB/16GB |
PCIe bus |
PCI Express v3.0 (8.0GT/s) x16; |
Data rate per port |
100Gbps |
Power<span "="" style="padding: 0px; margin: 0px;"> |
powered by PCIe |
Configuration |
PCIe/JTAG |
Technical Features |
|
Standards compliant |
IEEE_802.3bj 100GBASE_CR4,<span "="" style="padding: 0px; margin: 0px; font-size: 10pt;"> 100GBASE-LR4,100GBASE-KR4 IEEE P802.3by 25 Gb/s IEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control IEEE 802.1az Enhanced Transmission Selection |
PXE |
No |
DPDK |
Yes |
WoL |
No |
iSCSI |
No |
Jumbo Frames |
Yes |
FCoE |
No |
Environment Features |
|
Operating Temperature |
0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35℃ |
Certification |
FCC,CE,RoHS |
LED Indication |
|
LED Indication<span "="" style="padding: 0px; margin: 0px;"> |
100G:Red + Blue |
Physical Features |
|
Size (mm ±0.5mm) |
173*120*21 |
2U |
*1 |
Weight (g ±2g) |
* |
OS Support |
|
CentOS |
|
Ubuntu |
|
No windows & windows server |
